MKIII Bench Mounted Anilox Roller Cleaner

The Cellsonic MKIII Bench Mounted Anilox Roller Cleaner

This is a new bench top ultrasonic cleaning range developed specifically for the label market.

Although these units are bench mounted, they are built for industrial use utilising 2mm 316L stainless steel tanks. A floating, adjustable roller support is provided for the non-driven end of the unit.

Portable, affordable, flexible with high performance and built to last, compact industrial Anilox cleaner available in 1, 2, 3, & 4 roller format. The choice of tag and label printers worldwide.

Specials available on request.

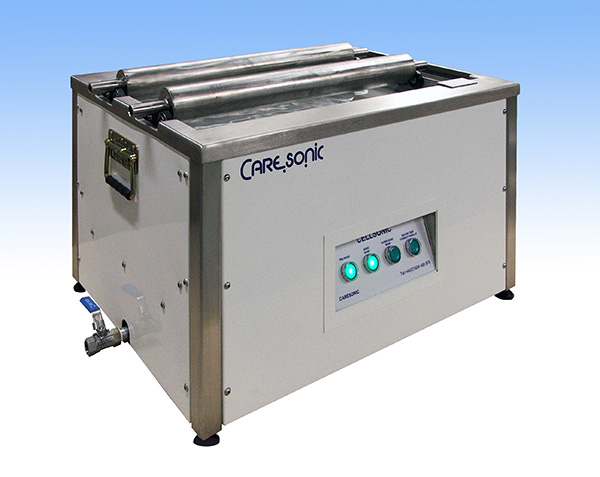

mk-iii-600px

Four options are available for single roller, twin roller and three roller configurations. Sizes are generally made to suit customers’ requirements, but are typically as follows:

Single Roller Twin Roller Three Roller Four Roller
Internal Tank Dimensions 660mm x 300mm x 150mm deep 660mm x 400mm x 150mm deep 660mm x 500mm x 150mm deep 660mm x 650mm x 150mm deep
Capacity 28 Litres 38 Litres 48 Litres 63 Litres
Overall Dimensions 800mm x 440mm x 420mm deep 800mm x 540mm x 420mm deep 800mm x 640mm x 420mm deep 800mm x 800mm x 420mm deep
Ultrasonic Power 300 Watts 400 Watts 600 Watts 600 Watts
Heater Power (Adjustable Temp.) 1Kw 1Kw 2Kw 2Kw
Weight of Unit 23Kg 27Kg 32Kg 85Kg
Material Stainless Steel: 316L Tank with 304 Case Stainless Steel: 316L Tank with 304 Case Stainless Steel: 316L Tank with 304 Case Stainless Steel: 316L Tank with 304 Case
Voltage Single Phase 220/240V 6 amps Single Phase 220/240V 8 amps Single Phase 220/240V 12 amps Single Phase 220/240V 12 amps
Drainage Ball Valve Ball Valve Ball Valve Ball Valve

Brochure download
